UM200 | UMF200

Características

Unicla 10-cylinder swashplate
Suitable for applications with a system capacity requirement of 6-11 kW
Displacement: 200 cc/rev
Maximum continuous: 6000 rpm
Smooth and quiet operation with excellent performance through all rev ranges
Clockwise and counterclockwise rotation with no change in volumetric efficiency
Heavy duty impressed steel gasket and HNBR Japanese high-temperature O-ring (two-point seal)
Forged steel cylinder housing
Drop-forged 5050 aluminium pistons with synthetic PTFE heat-treated rings
Lip seal with high tolerance to heat and operational fatigue
Genuine NSK bearings throughout

R134a \| R513a Refrigerante
Compressor	Óleo	Montagem
UM200	PAG56 (180 ml)	TM/QP21 compatible

R404a \| R452a Refrigerante
Compressor	Óleo	Montagem
UMF200	POE32 (180 ml)	TM/QP21 compatible

R1234yf Refrigerante
Compressor	Óleo	Montagem
UMY200	PAG46 HD (180ml)	TM/QP21 compatible

Montagem

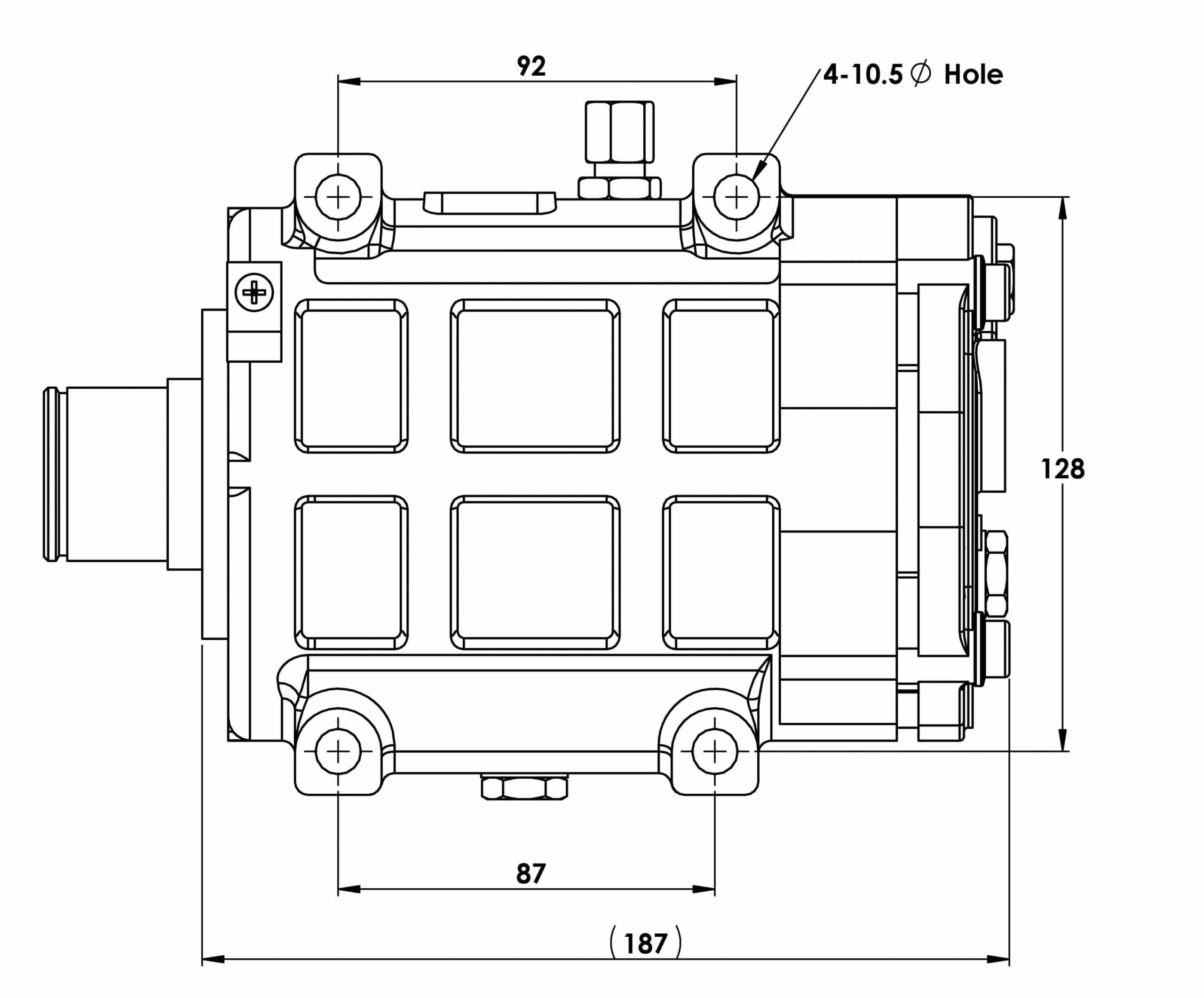

The UM and UMF model compressors feature a new mounting configuration of four conventional bolt-through mounting points that have been narrowed to 92 mm at the top and 87 mm at the bottom. They are directly compatible with TM21 and QP21 compressors.

Válvulas de serviço

High-pressure relief valve fitted, service valves not fitted.

Porta de retorno de óleo

An oil return fitting – 7/16-20 UNF male flare (Part No. 42203-000160) – is fitted on top of the compressor. It has a unique flow design suited to the Unicla oil separator (Part No. OS000010) and is interchangeable with the low-side service valve.

Outras portas e conexões

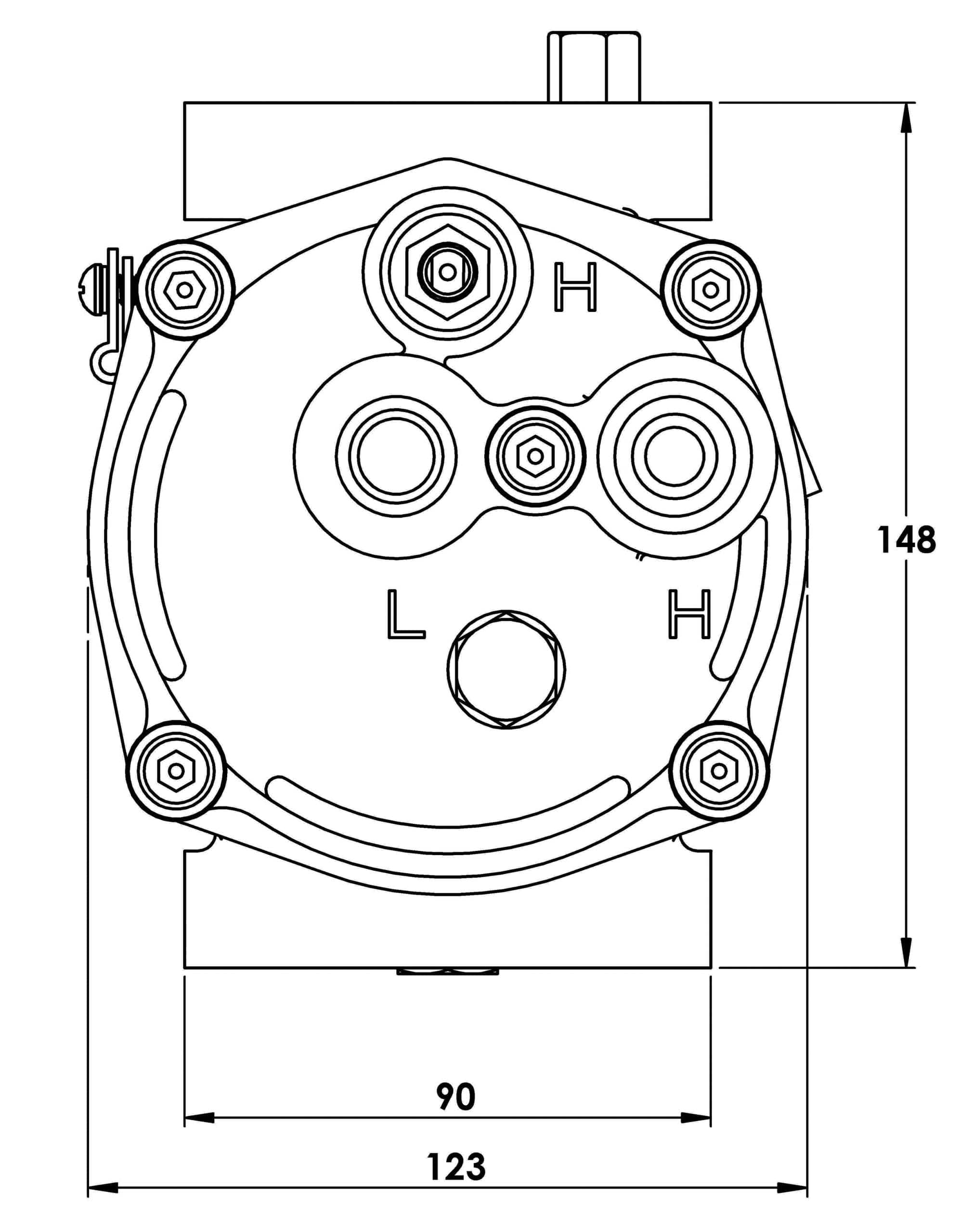

Consistent M12 x 1.0 mm access port size. Easy interchange of blanking plugs, service valves, oil return and pressure switch fittings.

Portas de mangueira
